Agricom 1070 Harvester Combine
Agricom 1070 SW Harvester Combine

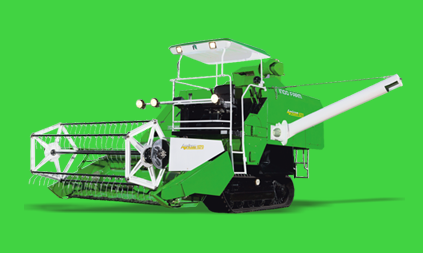

INDO FARM Agricom 1070
 |
 |
 |
| EATON Hydraulic Pump | High Ground Clearance | High Quality Bridgestone Track |
 |
 |
 |
| Powerful Engines | Thresh Area NO GRAIN LOSS | High Capacity Grain Tank |

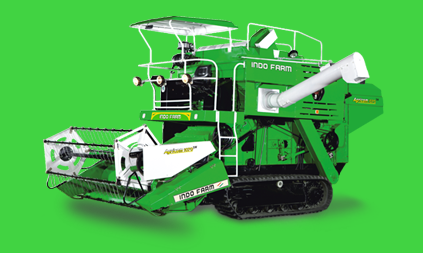

INDO FARM Agricom 1070 SW
|
|
|
| EATON Hydraulic Pump | High Ground Clearance | High Quality Bridgestone Track |
|
 |
|
| Powerful Engines | Large Cutterbar | High Capacity Grain Tank |
|
||
| Thresh Area NO GRAIN LOSS |
INDO FARM Agricom 1070
| ENGINE | ||
|---|---|---|
| Make | TATA 497 SP | |
| No. of Cylinders | 4 | |
| Power | 60 HP | |
| Cooling System | Water Cooled | |
| CUTTER BAR | ||
| Cutting Width | 2100 mm | |
| Height Adjustment | Hydraulic | |
| Lift Height | 900 mm from ground | |
| REEL | ||
| Drive | Chain Drive | |
| Height Adjustment | Hydraulic | |
| THRESHING EQUIPMENT | ||
| Drum Diameter | 450 mm | |
| Threshing Section Width | 575 mm | |
| Separating Section Width | 1225 mm | |
| Rotor Speed | 500-1275 rpm | |
| Speed Adjustment | Mechanical | |
| RICE CONCAVE | ||
| Position of Lever in Quadrant | 5th hole from back | |
| Concave to Threshing Drum Clearance | 13 mm at Entrance | |
| 6 mm at Exit | ||
| CLEANING | ||
| Type | Forced Air Cleaning Fan | |
| STEERING | ||
| Type | Hydraulic | |
| CAPACITY | ||
| Fuel Tank | 105 Ltrs. | |
| Grain Tank | 700 Kgs. of Paddy | |
| Hyd. Tank | 25 Ltrs. | |
| TRACK | ||
| Type | Rubber Reinforced | |
| Make | Bridgestone | |
| SPEED RANGE | ||
| Spped | 0-10 km/h | |
| DIMENSIONS | ||
| Length | 5800 mm | |
| Width | 2515 mm | |
| Height | 3030 mm | |
| Ground Clearance | 410 mm | |
| Weight | 4550 Kgs. | |
INDO FARM Agricom 1070 SW
| ENGINE | ||
|---|---|---|
| Make | TATA 497SP27 | |
| No. of Cylinders | 4 | |
| Power | 60 HP@2800 rpm | |
| Air-Cleaner | Dry Type | |
| Cooling System | Water Cooled | |
| CUTTER BAR MECHANISM | ||
| Cutting bar width | 2.28 m (7.5 feet) | |
| Cutter Height | Cutter Height 30-1295 mm | |
| TRANSMISSION/DRIVE | ||
| Hydrostatic transmission comprising of hydraulic variable displacement, double pump & two fixed displacement motors | ||
| REEL | ||
| Reel Drive | Chain & Sprocket | |
| Reel Height Adjustments | Hydraulic | |
| Feeder Housing | Chain type feed rack | |
| THRESHING EQUIPMENT | ||
| Thresher Drum | ||
| Width (mm) | 760 | |
| Diameter of Thresher Drum (mm) | 605 | |
| Speed (rpm) | 610 | |
| Speed Adjustment | Mechanical | |
| Concave | ||
| Length | 770 | |
| Clearance | Entrance 13-35 mm | |
| Exit 9-12 mm | ||
| Adjustment | Mechanical | |
| Straw Walker | ||
| No. of Straw Walker | 4 | |
| No. of Steps | 4 | |
| Length (mm) | 2900 | |
| Width (mm) | 178 | |
| Cleaning Sieves | ||
| Upper sieve Area | 1.38 m² | |
| Lower Sieve Area | 1.12 m² | |
| CAPACITIES | ||
| Grain Tank | 1.25 m³ | |
| Fuel Tank | 160 Ltr. | |
| ELECTRICAL SYSTEM | ||
| 12V, 120 Ah Batter starting, complete lighting equipment, front & rear lights. | ||
| TRACK ASSEMBLY | ||
| Length of belt on ground | 1830 mm | |
| Wheel Base | 1435 mm | |
| Width of Belt | 450 mm | |
| No. of Track Roller (each side) | 5 | |
| No. of Rubber Grousers (each side) | 60 | |
| Height of Grouser | 30 mm | |
| Ground Contact Area | 16470 cm² | |
| MAIN DIMENSIONS | ||
| Length | 6750 mm | |
| Width | 2645 mm | |
| Height | 3050 mm | |
| Ground Clearance | 260 mm | |
| Total Weight | 4875 Kg. approx. | |
